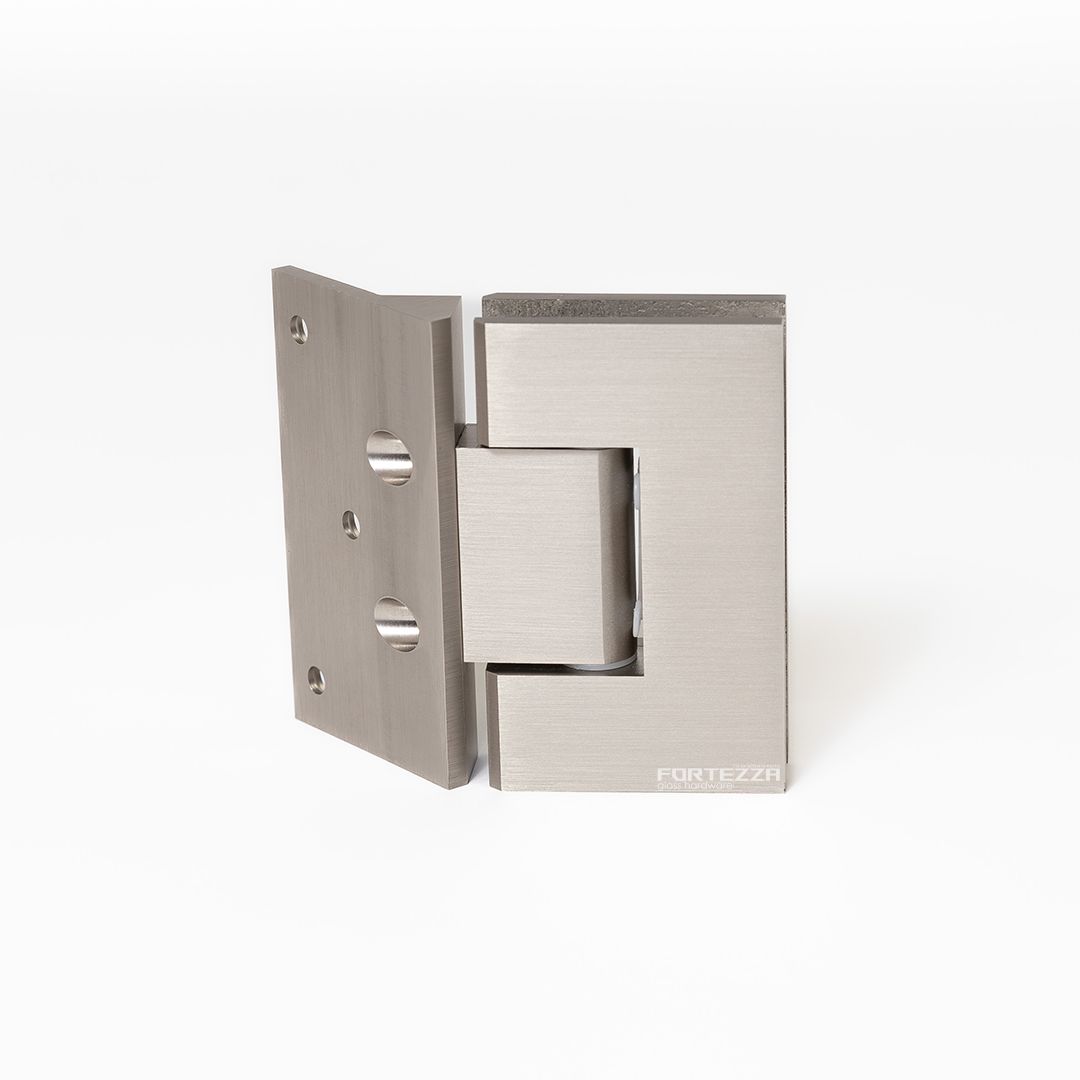

135 Degree Wall to Glass Hinge

Material: Solid Brass

Use: Tempered Glass for thickness 3/8” and ½”

Hinge Size: 1 15/16 x 3 9/16 x 2 3/16 inches

Hinge Weight: 1.58 lbs.

Capacity: 80 lbs, 28” using 2 hinges

120 lbs, 32” using 3 hinges

Available finishes: Brush Nickel – Polished Chrome – Matte Black – Brushed Gold.

Packing Size: 4 ¾ x 3 ¼ x 3 7/8 inches

Packing Weight: 1.68 lbs.

Product Cut Out
